Overview of Typical Corridor Components and Associated Characteristic Causes of Injury of Fish
- Publication
- Citation
Ecologic Institut & IGF Jena / FLUSS (2015): "Überblick über typische Korridorkomponenten und damit verbundene, charakteristische Schädigungsursachen." Infographic published in: Schmalz, Wolfgang; Falko Wagner und Damien Sonny 2015: "Arbeitshilfe zur standörtlichen Evaluierung des Fischschutzes und Fischabstiegs.", page 39.

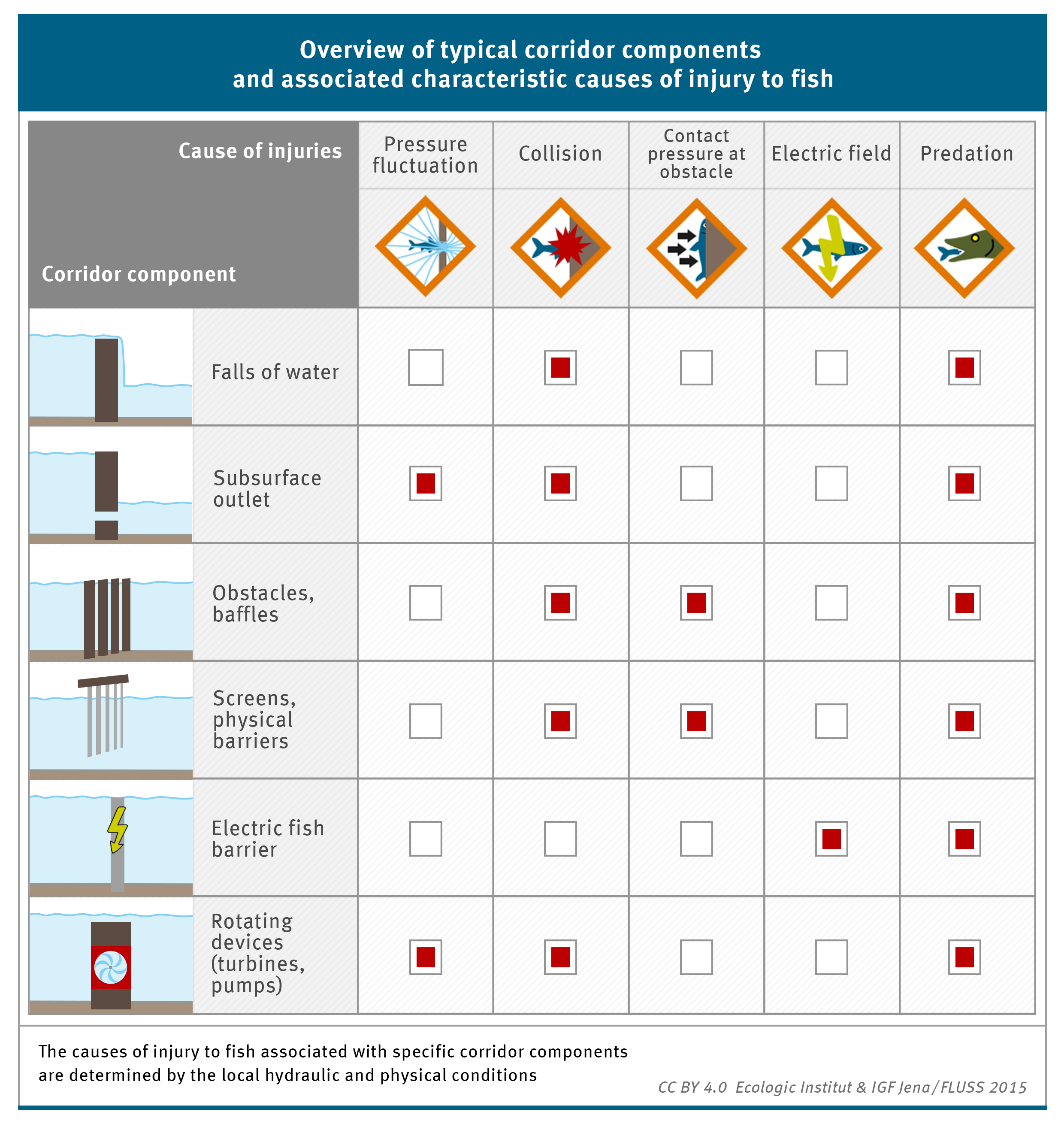

The infographic gives an overview of which characteristic causes of injury of fish is caused by which typical corridor components (e.g. barriers, turbines).
The infographic is part of a manual that focuses on the site specific evaluation of the efficiency of fish protection and bypass systems. Standardized evaluation principles are defined to promote significant, comparable studies. The manual constitutes a framework for an objective evaluation process.
