Fischschutzeinrichtungen im Atlas
- Publication
- Citation
Ecologic Institute 2022: Fischschutzeinrichtungen im Atlas. Infographic published in: Keuneke, Rita; Edith Massmann and Stephan Naumann 2022: Fischschutz- und Fischabstiegsmaßnahmen – Praxisbeispiele im Überblick. Atlas für den Wissenstransfer zu Fischschutz und Fischabstieg. Ingenieurbüro Floecksmühle GmbH, Umweltbundesamt: Aachen, Dessau-Roßlau.

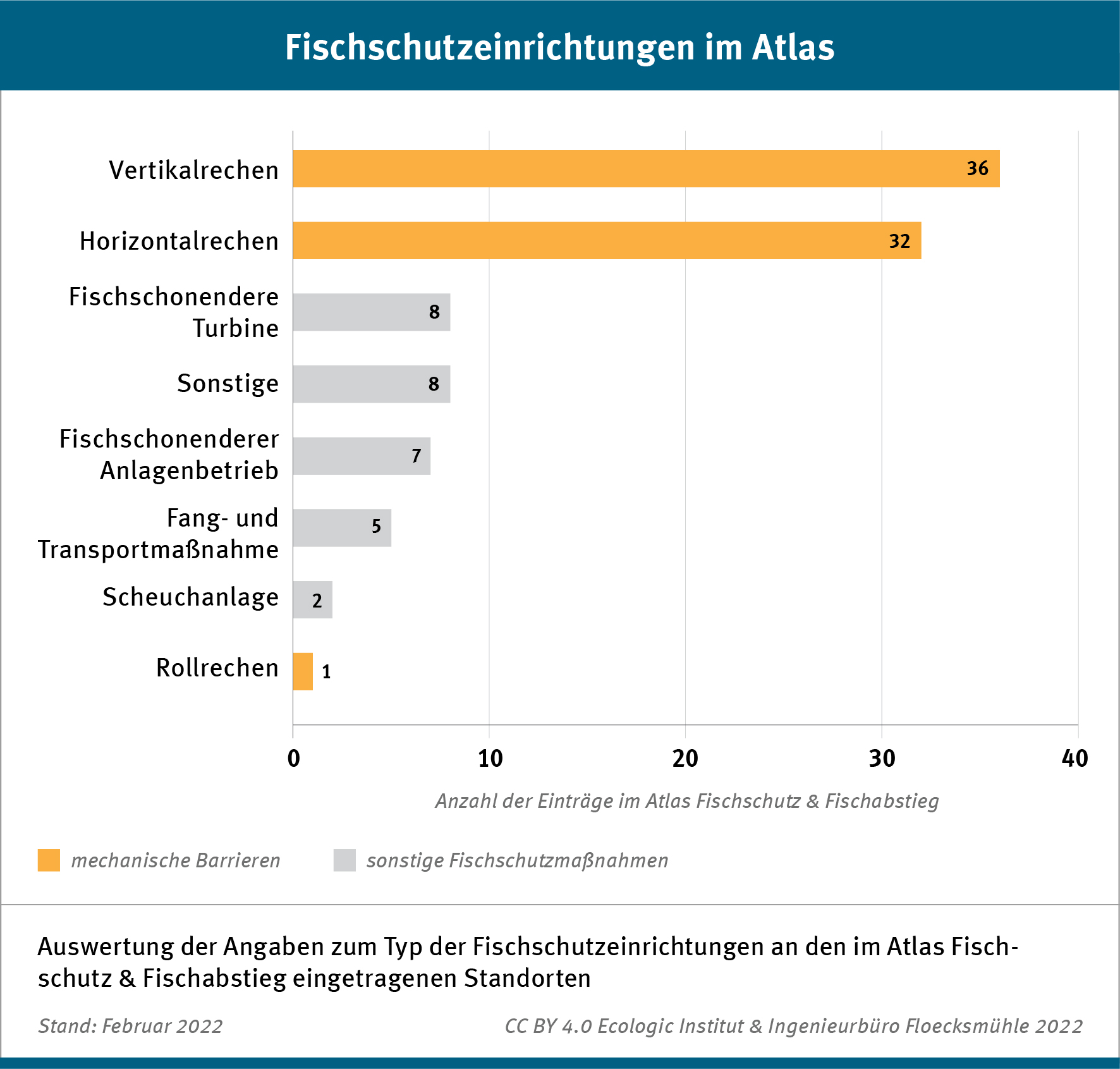

This infographic evaluates the information on the type of fish protection systems at the sites listed in the Atlas of Fish Protection & Downstream Fish. Fish protection systems are differentiated by trash rack, fish-protecting turbine, fish-protecting turbine operation, scouring facility, capture and transport measure, and other fish protection facilities. Screens – such as horizontal, vertical, and roller screens – are the most frequently mentioned fish protection device in the atlas. Vertical screens (36) have the most entries, followed by horizontal screens (32). The infographic is part of a fact sheet on fish protection and downstream fish migration measures.
The infographic is published under a creative commons license CC BY 4.0. That means it can be copied and redistributed in any medium or format and for any purpose as long as appropriate credit to the authors (Ecologic Institute, Ingenieurbüro Floecksmühle) is given.
